Paraffin pellet making machine wax granule machine

Product Categories

Zhengzhou Hongshi Machinery Co.,Ltd

Contact Now

Paraffin pellet making machine wax granule machine

Place of Origin : Henan, China

Product Type : wax granule machine

Condition : New

Machine Type : Granulator

Output (kg/h) : 100

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Gearbox, Motor, Gear

Brand Name : HS

Voltage : 220v/380v/customized

Dimension(L*W*H) : 7000*800*1000mm

Weight (KG) : 1400

Power (kW) : 2.95

Warranty : 2 years

Key Selling Points : High Productivity

Applicable Industries : Chemical industry

Showroom Location : None

Name : wax granule machine

Application Scope : wax,paraffin,bee wax,resin,rosin,sulfur,etc

Material : stainless steel+carbon steel

Granule shape : hemispherical

Granule size : 4-12mm

Keywords : paraffin wax pellet machine

Cooling belt length : 5m-28m

Cooling belth width : 40cm-150cm

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

Packaging Details : 1.The products are packing in strong wooden crates.
One wooden crates is filled with one machine.
2. Loaded into Container

Port : qingdao, tianjin, guangzhou,shanghai

Supply Ability : 80 Set/Sets per Week wax granule machine

Price : $9,500.00 - $50,000.00/Sets

Contact Now

Product Description

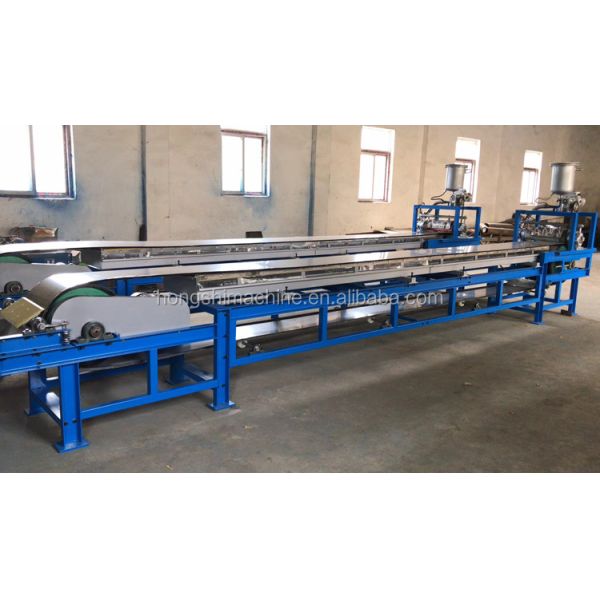

Rotary belt condensation wax granule machine is using low melting point characteristic of the material (50 ℃ to 300 ℃).Molten material through the special distributing device,drop on the steel belt. There are continuous sprayer and cooling device which can cool, solidify and form material on belt as soon as possible. Then make the material condensation,solidification and granulation.Widely used in wax,paraffin,resin,rosin,bee wax,sulfur,etc.

Paraffin pellet making machine wax granule machine

Features

1.Granule size can be choose between 4mm-8mm.Shapes can be hemispherical, strip and flake. 2.Equipment adopts frequency control, can choose a suitable speed according to the nature of the material. 3.Product uniform particles, and beautiful, forming rate above 95%. 4.Final granules are easy to package, transport and store, making it easy for users to meter, mix or remelt. 5.The belt adopts imported high quality stainless steel which can avoid material stick to the belt and easy to clean.

Main consisted parts

1.Wax granulator distributing device 2.Filter system. 3.Stainless steel cooling conveyor and 4.Transmission system 5.Spray cooling system 6.Sealing casing 7.Frequency conversion electric control cabinet

Size Information

Model	HS-WG40	HS-WG60	HS-WG100	HS-WG120	HS-WG150
Belt width	40cm	60cm	100cm	120cm	150cm
Belt length	5m	8m	11m	15m	19m
Mould size	1.8mm	1.8mm	1.8mm	2.2mm	2.2mm
Granule size	4-8mm	4-8mm	4-8mm	4-8mm	4-8mm
Capacity	50-100kg/h	100-300kg/h	300kg/h-400kg/h	1000kg/h	1500kg/h
Motor	2.25kw	4.45kw	4.5kw	5.5kw	7.7kw
Water pump	pressure: 0.3mp water flow: 8 m3/h	pressure: 0.3mp water flow: 20m3/h	pressure: 0.3mp water flow: 30m3/h	pressure: 0.4mpa water flow: 35m3/h	pressure: 0.4mpa water flow: 60m3/h

Detailed Images

Finished granules

Packing&Shipping

1.For the loose cargo we will packing by wooden box. 2.For the full container loading we are packing the machine with film and some on pallet accordingly . 3.We can ship the goods by air or by sea. 4.We will send pictures of cargo loading to our client to check and keep recording. 5.We can send cargo to client's warehouse to loading.

After Sales Service

1.Pre-sale: we given client the details technician offer, sign the sales contract etc 2.In-sales: we supply the details layout, installation instruction, technician support for the clients 3.After sales: we arrange engineer to install the machinery and training the workers for client 4.We have 24hours team to solve the after sales problem 5.We have free spare parts with the machine 6.We supply long term spare parts for every customer 7.We always update the new technology to every customer
